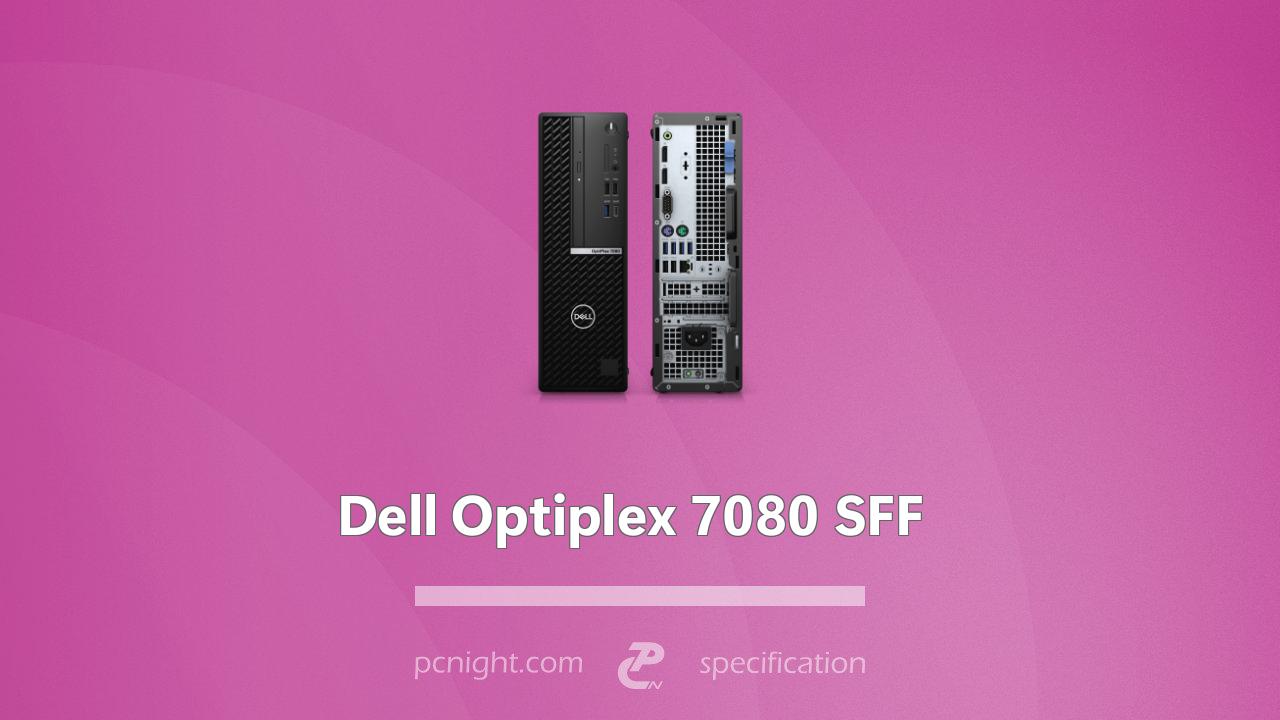

Dell Optiplex 7080 SFF Specs

Availability

• 2021 Dell Optiplex 7090 SFF
  Compare
• 2020 Dell Optiplex 7080 SFF
  Current
• 2019 Dell Optiplex 7070 SFF
  Compare
• 2018 Dell Optiplex 7060 SFF
  Compare

• Dell Pro Wireless Keyboard and Mouse - KM5221W - English
• Dell KB522 Business Multimedia Keyboard (US)
• Dell KB813 Smart Card Keyboard (US)
• Dell KB216 Wired Keyboard English
• No Keyboard

• 3 x USB-A
  1 x USB 2.0 (480 Mbps).
  1 x USB 2.0 (480 Mbps) with Powershare.
  1 x USB 3.2 Gen 2 (10 Gbps).
• 1 x USB-C
  USB 3.2 Gen 2 (10 Gbps).
• 1 x Universal Audio Jack
• 1 x Optional SD Card Slot

• 6 x USB-A
  2 x USB 2.0 (480 Mbps) with Smart Power On
  3 x USB 3.2 Gen 1 (5 Gbps)
  1 x USB 3.2 Gen 2 (10 Gbps).
• 2 x DisplayPort
  DisplayPort 1.4 supports 4K@120Hz.
• 1 x Optional Display Out
  VGA, DisplayPort 1.4, HDMI 2.0b, or USB 3.2 Gen 2 with Alt-mode (optional).
• 1 x RJ-45
  Gigabit Ethernet.
• 1 x Audio Jack
  Re-tasking Line out/Line in audio port.
• 1 x Serial
• 2 x PS/2
• 1 x Kensington Lock Slot
• 1 x Power Connection

• 200W
  80+ Bronze 85% Efficiency
• 200W
  80+ Platinum 92% Efficiency

• 10th Gen Intel® Core™ i3-10100
  4C/8T, 3.60 → 4.30 GHz, 6MB SmartCache, 65W
• 10th Gen Intel® Core™ i3-10300
  4C/8T, 3.70 → 4.40 GHz, 8MB SmartCache, 65W
• 10th Gen Intel® Core™ i5-10400
  6C/12T, 2.90 → 4.30 GHz, 12MB SmartCache, 65W
• 10th Gen Intel® Core™ i5-10500
  6C/12T, 3.10 → 4.50 GHz, 12MB SmartCache, 65W
• 10th Gen Intel® Core™ i5-10600
  6C/12T, 3.30 → 4.80 GHz, 12MB SmartCache, 65W
• 10th Gen Intel® Core™ i7-10700
  8C/16T, 2.90 → 4.80 GHz, 16MB SmartCache, 65W
• 10th Gen Intel® Core™ i9-10900
  10C/20T, 2.80 → 5.20 GHz, 20MB SmartCache, 65W

• 10th Gen Intel® Core™ i3-10100
  Intel® UHD Graphics 630

  23 Execution Units, 350 → 1100 MHz
• 10th Gen Intel® Core™ i3-10300
  Intel® UHD Graphics 630

  23 Execution Units, 350 → 1150 MHz
• 10th Gen Intel® Core™ i5-10400
  Intel® UHD Graphics 630

  24 Execution Units, 350 → 1100 MHz
• 10th Gen Intel® Core™ i5-10500
  Intel® UHD Graphics 630

  24 Execution Units, 350 → 1150 MHz
• 10th Gen Intel® Core™ i5-10600
  Intel® UHD Graphics 630

  24 Execution Units, 350 → 1200 MHz
• 10th Gen Intel® Core™ i7-10700
  Intel® UHD Graphics 630

  24 Execution Units, 350 → 1200 MHz
• 10th Gen Intel® Core™ i9-10900
  Intel® UHD Graphics 630

  24 Execution Units, 350 → 1200 MHz

• GT 730 - 2GB GDDR5
  1 x DisplayPort 1.4 1 x HDMI 2.0b

• R5 430 - 2GB GDDR5
  1 x DisplayPort 1.4 2 x mini DisplayPort ports
• RX 640 - 4GB GDDR5
  1 x DisplayPort 1.4 2 x mini DisplayPort ports

• Memory Slots: 4 DIMM slots
• Memory Type: Single or Dual Channel DDR4 Memory
• Memory Speed:
  2666MHz 2933MHz
• Memory Per Slot:
  4GB 8GB 16GB 32GB

• 256GB 512GB 1TB 2TB
  M.2 PCIe Gen 3 x4 NVME SSD
• 500GB 1TB 2TB
  5400 rpm or 7200 rpm 2.5" SATA Hard Drive
• 1TB 2TB 4TB
  5400 rpm or 7200 rpm 3.5" SATA Hard Drive

• 1 x PCIe x16 slot
  PCIe Gen 4, Half-height
• 1 x PCIe x4 slot
  PCIe Gen 4, Half-height

• 3 x SATA slots
  For 2.5-inch HDD/SSD, and slim Optical Drive.

• 1 x M.2 2230 slot
  For WiFi and Bluetooth combo card
• 1 x M.2 2280 slot
  For SSD/Intel Optane.
• 1 x M.2 2230/2280 slot
  For SSD/Intel Optane

• No Wireless LAN Card
• Qualcomm QCA9377 (DW1810)
  Up to 433 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.0
• Qualcomm QCA61x4a
  Up to 867 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.0
• Intel AX201
  Up to 2400 Mbps Dual band 2.4 GHz/5 GHz WiFi-6 (802.11ax) Bluetooth 5.1

• Windows 10 Pro
  Upgradable to Windows 11
• Ubuntu Linux 20.04 LTS

• One 2W Speaker (optional)
• Audio controller
  • Realtek ALC3246
  • 4 Channel High Definition Audio
  • 24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital)
• External Ports
  • 1 x Universal Audio Jack
    Front
  • 1 x Audio port
    Line-out audio port with re-tasking to Line-in (Rear).
