Dell Optiplex 5080 Micro Specs

Here's what you need to know about Dell Optiplex 5080 Micro Specs, including price, processors, memory, graphics, storage, ports, and more.

BY June 07, 2020 04:22 pm
Dell Optiplex 5080 Micro Specs

The 2020 Dell Optiplex 5080 Micro features 35W 10th Generation Intel Comet Lake dual-core Intel Pentium Gold G6400T up to a 35W 8-core Intel Core i7-10700T with a boost speed up to 4.50 GHz. The Intel® Q470 Chipset motherboard inside Dell Optiplex 5080 Micro has two memory slots that support up to 64GB of 2933MHz dual-channel DDR4 memory.

What's New in Dell Optiplex 5080 Micro

Here's what you need to know about the Dell Optiplex 5080 Micro.

  • 10th Generation Intel Comet Lake T-Series Processors.
  • Up to Intel® Core™ i7-10700T (8 cores/16 threads, up to 4.5GHz).
  • Up to 64GB 2933MHz DD4 memory.
  • Up to 1 x 2TB PCIe Gen 3 x4 NVMe SSD.

Dell Optiplex 5080 Micro Full Specifications

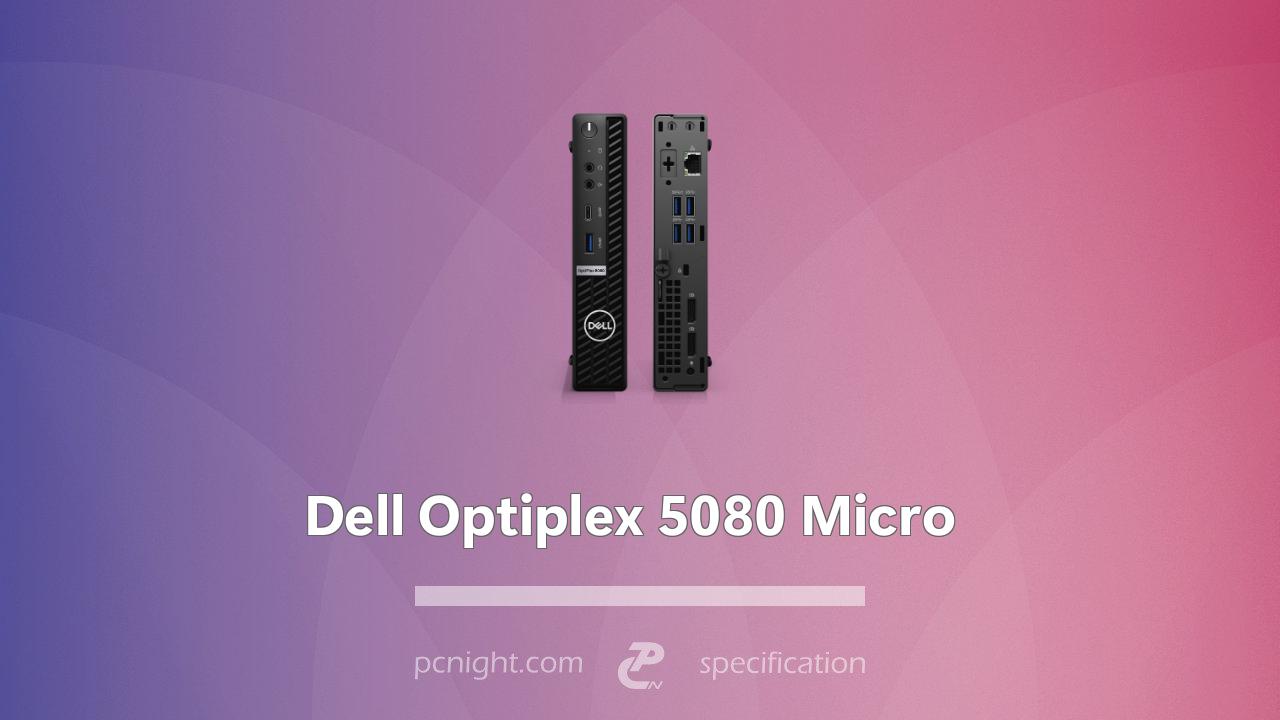

Dell Optiplex 5080 Micro image
Dell Optiplex 5080 Micro
Compare

Availability

Released2020
Release InfoAnnounced on May 29, 2020.
Pricing
  • $799.00
    i3-10300T 8GB 500GB HDD
  • $829.00
    i5-10500T 8GB 128GB M.2
  • $849.00
    i5-10500T 8GB 128GB M.2 Wi-Fi 6
  • $859.00
    i5-10500T 8GB 256GB M.2
  • $879.00
    i5-10500T 8GB 256GB M.2 Wi-Fi 6
  • $889.00
    i5-10500T 16GB 256GB M.2
  • $1,009.00
    i7-10700T 8GB 256GB M.2 Wi-Fi 6
  • $1,049.00
    i7-10700T 16GB 256GB M.2 Wi-Fi 6
Generations

Exterior

Dell Optiplex 5080 Micro
Dimensions7.16” x 7.03” x 1.42” (182 x 178.50 x 36 mm)
WeightUp to 3.04 lb (1.38 kg)
Colors
Black
Keyboard and Trackpad
  • Dell KB216 Wired Keyboard English
  • Dell KM636 Wireless Keyboard and Mouse
  • Dell KB522 Business Multimedia Keyboard (US)
  • Dell KB813 Smart Card Keyboard (US)
  • No Keyboard Selected
PortsFront
  • 1 x USB-A
    USB 3.2 Gen 1 (5 Gbps) with PowerShare.
  • 1 x USB-C
    USB 3.2 Gen 2 (10 Gbps).
  • 1 x Universal Audio Jack
  • 1 x Audio Jack
    Re-tasking Line out/Line in audio port.
Rear
  • 3 x USB-A
    USB 3.2 Gen 1 (5 Gbps).
  • 1 x USB-A
    USB 3.2 Gen 1 (5 Gbps) with Smart Power On.
  • 2 x DisplayPort
    DisplayPort 1.4 supports 4K@120Hz.
  • 1 x RJ-45
    Gigabit Ethernet.
  • 1 x DC-in
    4.5mm barrel type.
  • 1 x Kensington Lock Slot
  • 1 x Padlock Loop Lock
  • Optional Ports
    • 1 x Video Port
      Can be DisplayPort 1.4, HDMI 2.0b, USB 3.2 Gen 2 Type-C Port with Alt-mode or VGA port.
    • 1 x Serial/PS2 port

Chasis

Dell Optiplex 5080 Micro
Form FactorMicro Form Factor
Power Supply4.5mm Barrel Power Adapter
  • 90W
    For 35W Intel Core i3/i5 CPU.
  • 130W
    For 35W Intel Core i7/i9 CPU.

Internal Specs

Dell Optiplex 5080 Micro
ChipsetIntel® Q470 Chipset
Processor
  • 10th Gen Intel® Pentium® Gold G6400T
    2C/4T, 3.40 GHz, 4MB SmartCache, 35W
  • 10th Gen Intel® Pentium® Gold G6500T
    2C/4T, 3.50 GHz, 4MB SmartCache, 35W
  • 10th Gen Intel® Core™ i3-10100T
    4C/8T, 3.00 → 3.80 GHz, 6MB SmartCache, 35W
  • 10th Gen Intel® Core™ i5-10400T
    6C/12T, 2.00 → 3.60 GHz, 12MB SmartCache, 35W
  • 10th Gen Intel® Core™ i5-10500T
    6C/12T, 2.30 → 3.80 GHz, 12MB SmartCache, 35W
  • 10th Gen Intel® Core™ i5-10600T
    6C/12T, 2.40 → 4.00 GHz, 12MB SmartCache, 35W
  • 10th Gen Intel® Core™ i7-10700T
    8C/16T, 2.00 → 4.50 GHz, 16MB SmartCache, 35W
Integrated Graphics
  • 10th Gen Intel® Pentium® Gold G6400T
    Intel® UHD Graphics 610
    350 → 1050 MHz
  • 10th Gen Intel® Pentium® Gold G6500T
    Intel® UHD Graphics 630
    350 → 1050 MHz
  • 10th Gen Intel® Core™ i3-10100T
    Intel® UHD Graphics 630
    23 Execution Units, 350 → 1100 MHz
  • 10th Gen Intel® Core™ i5-10400T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1100 MHz
  • 10th Gen Intel® Core™ i5-10500T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1150 MHz
  • 10th Gen Intel® Core™ i5-10600T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1200 MHz
  • 10th Gen Intel® Core™ i7-10700T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1200 MHz
Memory
  • Memory Slots: 2 SODIMM slots
  • Memory Type: Single or Dual Channel DDR4 Memory
  • Memory Speed:
    2666MHz 2933MHz
  • Memory Per Slot:
    4GB 8GB 16GB 32GB
Memory Configurations
4GB 8GB 16GB 32GB 64GB 128GB
2666 MHz for Intel Core i3/i5 CPU
2933 MHz for Intel Core i7/i9 CPU
Storage
  • 256GB 512GB 1TB 2TB
    M.2 PCIe Gen 3 x4 or Gen 4 x4 NVME SSD
  • 500GB 1TB 2TB
    5400 rpm or 7200 rpm 2.5" SATA Hard Drive
SlotsExpansion Slots
  • No Expansion slot
SATA
  • 1 x 2.5” HDD Connector
M.2
  • 1 x M.2 2230 slot
    For WiFi and Bluetooth combo card
  • 1 x M.2 2230/2280 slot
    For PCIe NVMe Gen 3 x4 SSD/Intel Optane

Connectivity

Dell Optiplex 5080 Micro
Wi-Fi
  • No Wireless LAN Card
  • Qualcomm QCA9377 (DW1810)
    Up to 433 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.0
  • Qualcomm QCA61x4a
    Up to 867 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.0
  • Intel AX201
    Up to 2400 Mbps Dual band 2.4 GHz/5 GHz WiFi-6 (802.11ax) Bluetooth 5.2
Bluetooth
Bluetooth 5.0 Bluetooth 5.2
Optional
EthernetIntel I219-LM Gigabit Ethernet controller
Speed: 10/100/1000 Mbps.

Software

Dell Optiplex 5080 Micro
OS
  • Windows 10 Home Windows 10 Pro
    Upgradable to Windows 11
  • Ubuntu Linux 20.04 LTS
  • NeoKylin 7.0 (China only)
Built-in Apps
Microsoft Office 30 Day Trial

Camera & Audio

Dell Optiplex 5080 Micro
Audio
  • One 2W Speaker (optional)
  • Audio controller
    • Realtek ALC3246
    • Intel High Definition Audio
    • 4 Channel High Definition Audio
    • 24-bit DAC (Digital-to-Analog) and ADC (Analog-to-Digital)
  • External Ports
    • 1 x Universal Audio Jack
      Front
    • 1 x Audio port
      Line-out audio port with re-tasking to Line-in (Rear).

Misc

Dell Optiplex 5080 Micro
Security
  • 1 x Kensington security-cable slot
  • 1 x Padlock loop
  • Chassis intrusion switch
  • SafeID including Trusted Platform Module (TPM) 2.0
  • Smart card keyboard (FIPS)
  • Microsoft 10 Device Guard and Credential Guard (Enterprise SKU)
  • Microsoft Windows Bitlocker
  • Local hard drive data wipe through BIOS (Secure Erase)
  • Self-encrypting storage drives (Opal, FIPS)
  • Trusted Platform Module (TPM) 2.0
  • China TPM
  • Intel Secure Boot
  • Intel Authenticate
  • SafeBIOS: includes Dell Off-host BIOS Verification, BIOS Resilience, BIOS Recovery, and additional BIOS Controls
  • Physical Security Options:
    Chassis lock slot support Chassis Intrusion Switch Lockable Cable Covers Supply chain tamper alerts
Warranty3 Years Hardware Service with Onsite/In-Home Service After Remote Diagnosis

Dell Optiplex 5080 Micro Price

Here is the latest price update for Dell Optiplex 5080 Micro.

Dell Optiplex 5080 Micro Motherboard

Here is the photo or diagram of the Dell Optiplex 5080 Micro system board.

Dell Optiplex 5080 Micro Motherboard
Source: Dell
