Dell Optiplex 3080 Micro Specs

Here's what you need to know about Dell Optiplex 3080 Micro Specs, including price, processors, memory, graphics, storage, ports, and more.

BY Evan Forrest September 12, 2020 04:33 pm

The 2020 Dell Optiplex 3080 Micro features 35W 10th Generation Intel Comet Lake dual-core Intel Celeron G5900T up to a 35W 8-core Intel Core i7-10700T with a boost speed up to 4.50 GHz. The Intel® B460 Chipset motherboard inside Dell Optiplex 3080 Micro has two memory slots that support up to 64GB of 2933MHz dual-channel DDR4 memory.

	Dell Optiplex 3080 Micro Compare
Availability
Released	2020
Release Info	Announced on September 3, 2020.
Pricing	$945.43 i3-10100T 4GB 500GB 2.5” HDD $970.00 i3-10105T 8GB 128GB M.2 Wi-Fi 5 $998.57 i3-10105T 8GB 256GB M.2 Wi-Fi 5 $1,055.71 i5-10500T 8GB 500GB 2.5” HDD Wi-Fi 6 $1,098.57 i5-10500T 8GB 128GB M.2 Wi-Fi 6 $1,127.14 i5-10500T 8GB 256GB M.2 $1,155.71 i5-10500T 8GB 256GB M.2 Wi-Fi 6 $1,212.86 i5-10500T 16GB 256GB M.2 $1,241.43 i5-10500T 16GB 256GB M.2 Wi-Fi 6
Generations	2021 Dell Optiplex 3090 Micro Compare 2020 Dell Optiplex 3080 Micro Current 2019 Dell Optiplex 3070 Micro Compare 2018 Dell Optiplex 3060 Micro Compare

Exterior	Dell Optiplex 3080 Micro
Dimensions	7.0” x 7.2” x 1.4” (178 x 183 x 36 mm)
Weight	Starting at 2.56 lb (1.16 kg)
Colors	Black
Keyboard and Trackpad	Dell KB216 Wired Keyboard English Dell KB522 Business Multimedia Keyboard (US) Dell KB813 Smart Card Keyboard (US) Dell Pro Wireless Keyboard and Mouse - KM5221W - English No Keyboard
Ports	Front 2 x USB-A USB 3.2 Gen 1 (5 Gbps). 1 x Universal Audio Jack 1 x Audio port Line-out audio port with re-tasking to Line-in. Rear 2 x USB-A USB 2.0 (480 Mbps) with Smart Power On. 2 x USB-A USB 3.2 Gen 1 (5 Gbps). 1 x DisplayPort 1.4 Supports 4K@120Hz. 1 x HDMI 1.4b Supports 4K@24Hz or 1080p@120Hz. 1 x RJ-45 Gigabit Ethernet. 1 x Kensington Lock Slot 1 x Power Connection Optional Ports 1 x Video Port Can be DisplayPort 1.4, HDMI 2.0b, or VGA port.

Chasis	Dell Optiplex 3080 Micro
Form Factor	Micro Form Factor
Power Supply	65W 4.5mm Barrel Power Adapter.

Internal Specs	Dell Optiplex 3080 Micro
Chipset	Intel® B460 Chipset
Processor	10th Gen Intel® Celeron® G5900T 2C/2T, 3.20 GHz, 2MB SmartCache, 35W 10th Gen Intel® Celeron® G5905T 2C/2T, 3.30 GHz, 4MB SmartCache, 35W 10th Gen Intel® Pentium® Gold G6400T 2C/4T, 3.40 GHz, 4MB SmartCache, 35W 10th Gen Intel® Pentium® Gold G6405T 2C/4T, 3.50 GHz, 4MB SmartCache, 35W 10th Gen Intel® Pentium® Gold G6500T 2C/4T, 3.50 GHz, 4MB SmartCache, 35W 10th Gen Intel® Pentium® Gold G6505T 2C/4T, 3.60 GHz, 4MB SmartCache, 35W 10th Gen Intel® Core™ i3-10100T 4C/8T, 3.00 → 3.80 GHz, 6MB SmartCache, 35W 10th Gen Intel® Core™ i3-10105T 4C/8T, 3.00 → 3.90 GHz, 6MB SmartCache, 35W 10th Gen Intel® Core™ i3-10300T 4C/8T, 3.00 → 3.90 GHz, 8MB SmartCache, 35W 10th Gen Intel® Core™ i3-10305T 4C/8T, 3.00 → 4.00 GHz, 8MB SmartCache, 35W 10th Gen Intel® Core™ i5-10400T 6C/12T, 2.00 → 3.60 GHz, 12MB SmartCache, 35W 10th Gen Intel® Core™ i5-10500T 6C/12T, 2.30 → 3.80 GHz, 12MB SmartCache, 35W 10th Gen Intel® Core™ i5-10600T 6C/12T, 2.40 → 4.00 GHz, 12MB SmartCache, 35W 10th Gen Intel® Core™ i7-10700T 8C/16T, 2.00 → 4.50 GHz, 16MB SmartCache, 35W
Integrated Graphics	10th Gen Intel® Celeron® G5900T Intel® UHD Graphics 610 350 → 1000 MHz 10th Gen Intel® Celeron® G5905T Intel® UHD Graphics 610 350 → 1000 MHz 10th Gen Intel® Pentium® Gold G6400T Intel® UHD Graphics 610 350 → 1050 MHz 10th Gen Intel® Pentium® Gold G6405T Intel® UHD Graphics 610 350 → 1050 MHz 10th Gen Intel® Pentium® Gold G6500T Intel® UHD Graphics 630 350 → 1050 MHz 10th Gen Intel® Pentium® Gold G6505T Intel® UHD Graphics 630 350 → 1050 MHz 10th Gen Intel® Core™ i3-10100T Intel® UHD Graphics 630 23 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i3-10105T Intel® UHD Graphics 630 23 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i3-10300T Intel® UHD Graphics 630 23 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i3-10305T Intel® UHD Graphics 630 23 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i5-10400T Intel® UHD Graphics 630 24 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i5-10500T Intel® UHD Graphics 630 24 Execution Units, 350 → 1150 MHz 10th Gen Intel® Core™ i5-10600T Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Core™ i7-10700T Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz
Memory	Memory Slots: 2 x SODIMM slots Memory Type: Single or Dual Channel DDR4 Memory Memory Speed: 2666MHz 2933MHz Memory Configurations 4GB 8GB 16GB 32GB 64GB 2666 MHz for 10th Gen Intel Celeron/Pentium/i3/i5 Processors 2933 MHz for 10th Gen Intel Core i7 Processors
Storage	256GB 512GB 1TB M.2 PCIe Gen 3 x4 NVME SSD 500GB 1TB 2TB 5400 rpm or 7200 rpm 2.5" SATA Hard Drive
Slots	Expansion Slots No Expansion slot. SATA 1 x SATA slot For 2.5-inch HDD/SSD. M.2 1 x M.2 2230 slot For WiFi and Bluetooth combo card 1 x M.2 2230/2280 slot For SSD/Intel Optane

Connectivity	Dell Optiplex 3080 Micro
Wi-Fi	No Wireless LAN Card Intel 3165 Up to 867 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 4.2 Qualcomm QCA61x4a Up to 867 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.0 Intel AX200 Up to 2400 Mbps Dual band 2.4 GHz/5 GHz WiFi-6 (802.11ax) Bluetooth 5.1
Bluetooth	Bluetooth 4.2 Bluetooth 5.0 Bluetooth 5.1 Optional
Ethernet	Intel Realtek RTL8111HSD-CG Gigabit Ethernet controller Speed: 10/100/1000 Mbps.

Software	Dell Optiplex 3080 Micro
OS	Windows 10 Home Windows 10 Pro Upgradable to Windows 11 Ubuntu Linux 20.04 LTS NeoKylin 7.0 (China only)
Built-in Apps	Microsoft Office 30 Day Trial

Camera & Audio	Dell Optiplex 3080 Micro
Audio	One 2W Speaker (optional) Audio controller Realtek ALC3246 4 Channel High Definition Audio Intel HDA (high-definition audio) External Ports 1 x Universal Audio Jack Front 1 x Audio port Line-out audio port with re-tasking to Line-in (Rear).

Misc	Dell Optiplex 3080 Micro
Warranty	3 Years Hardware Service with Onsite/In-Home Service After Remote Diagnosis

What's New in Dell Optiplex 3080 Micro

Dell Optiplex 3080 Micro Full Specifications

Availability

Exterior

Chasis

Internal Specs

Connectivity

Software

Camera & Audio

Misc

Dell Optiplex 3080 Micro Price

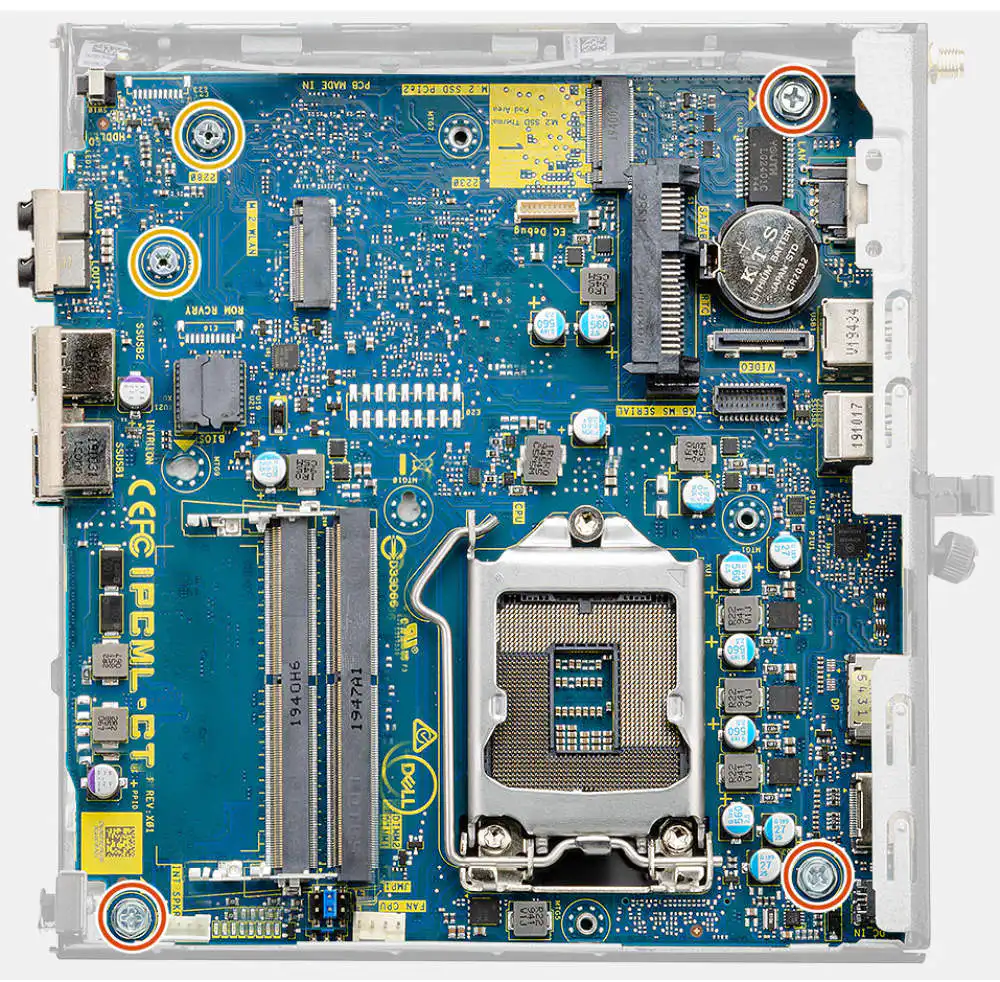

Dell Optiplex 3080 Micro Motherboard
