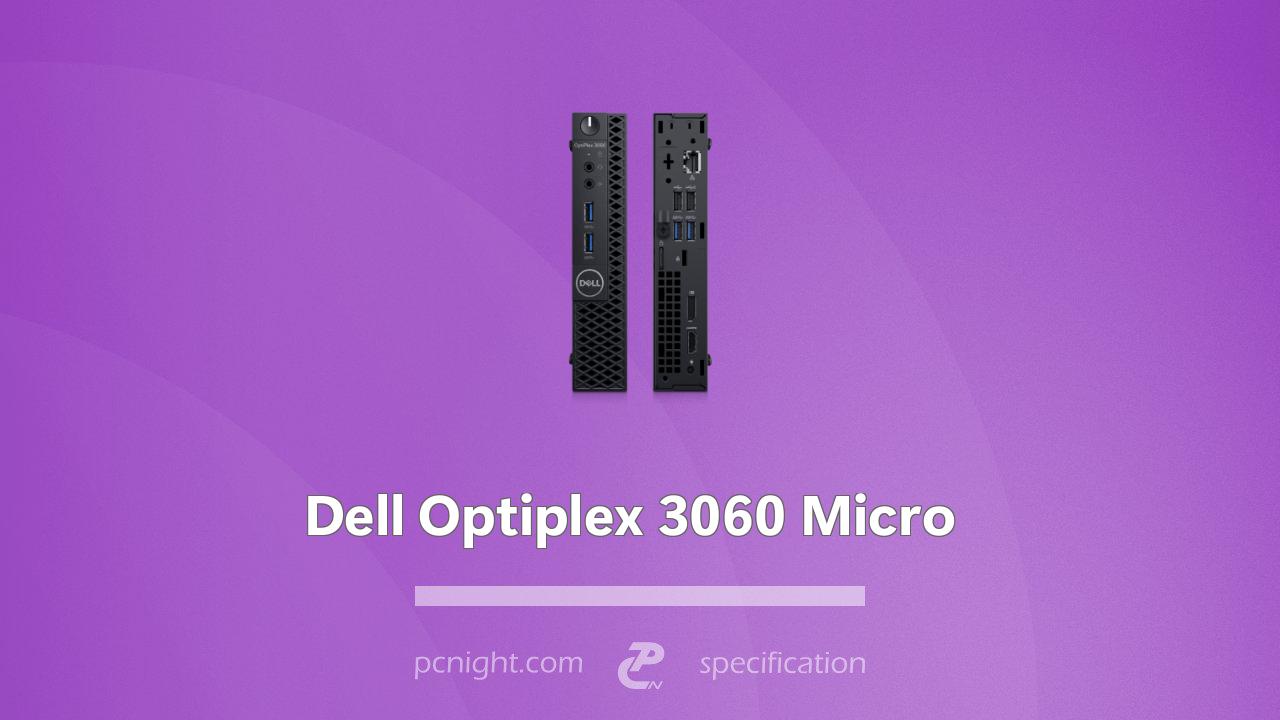

Dell Optiplex 3060 Micro Specs

Here's what you need to know about Dell Optiplex 3060 Micro Specs, including price, processors, memory, graphics, storage, ports, and more.

BY June 08, 2018 10:22 am
Dell Optiplex 3060 Micro Specs

The 2018 Dell Optiplex 3060 Micro features 35W 8th Generation Intel Coffee Lake dual-core Intel Celeron G4900T up to a 35W 6-core Intel Core i7-8700T with a boost speed up to 4.00 GHz. The Intel® H370 Chipset motherboard inside Dell Optiplex 3060 Micro has two memory slots that support up to 32GB of 2666MHz dual-channel DDR4 memory.

What's New in Dell Optiplex 3060 Micro

Here's what you need to know about the Dell Optiplex 3060 Micro.

  • 8th Generation Intel Coffee Lake Processors.
  • Up to 35W Intel Core i7-8700T (6 cores/12MB/12T, up to 4.0 GHz).
  • Up to 32GB 2666MHz DDR4 memory
  • Up to 65W Power Adapter.

Dell Optiplex 3060 Micro Full Specifications

Dell Optiplex 3060 Micro image
Dell Optiplex 3060 Micro
Compare

Availability

Released2018
Release InfoAnnounced on May 24, 2018.
Generations

Exterior

Dell Optiplex 3060 Micro
Dimensions7.0” x 7.2” x 1.4” (178 x 183 x 36 mm)
WeightStarting at 2.56 lb (1.16 kg)
Colors
Black
Keyboard and Trackpad
  • Dell KB216 Wired Keyboard and Mouse
  • Dell KM636 Wireless Keyboard and Mouse
PortsFront
  • 2 x USB-A
    2 x USB 3.1 Gen 1 (5 Gbps).
  • 1 x Universal Audio Jack
  • 1 x Line out port
Rear
  • 4 x USB-A
    1 x USB 2.0 (480 Mbps).
    1 x USB 2.0 (480 Mbps) with Smart Power on.
    2 x USB 3.1 Gen 1 (5 Gbps).
  • 1 x DisplayPort 1.2
    Supports 4K@75Hz or 1080p@240Hz.
  • 1 x HDMI 1.4
    Supports 4K@24Hz or 1080p@120Hz.
  • 1 x RJ-45
    Gigabit Ethernet.
  • 1 x Kensington Lock Slot
  • 1 x Power Connection
  • Optional Ports
    • 1 x Video Port
      Can be DisplayPort , HDMI 2.0b, or VGA port.
    • 1 x Serial/PS2 port

Chasis

Dell Optiplex 3060 Micro
Form FactorMicro Form Factor
Power Supply65W
4.5mm Barrel Power Adapter.

Internal Specs

Dell Optiplex 3060 Micro
ChipsetIntel® H370 Chipset
Processor
  • 8th Gen Intel® Celeron® G4900T
    2C/2T, 2.90 GHz, 2MB SmartCache, 35W
  • 8th Gen Intel® Pentium® Gold G5400T
    2C/4T, 3.10 GHz, 4MB SmartCache, 35W
  • 8th Gen Intel® Pentium® Gold G5500T
    2C/4T, 3.20 GHz, 4MB SmartCache, 35W
  • 8th Gen Intel® Core™ i3-8100T
    4C/4T, 3.10 GHz, 6MB SmartCache, 35W
  • 8th Gen Intel® Core™ i3-8300T
    4C/4T, 3.20 GHz, 8MB SmartCache, 35W
  • 8th Gen Intel® Core™ i5-8400T
    6C/6T, 1.70 → 3.30 GHz, 9MB SmartCache, 35W
  • 8th Gen Intel® Core™ i5-8500T
    6C/6T, 2.10 → 3.50 GHz, 9MB SmartCache, 65W
  • 8th Gen Intel® Core™ i7-8700T
    6C/12T, 2.40 → 4.00 GHz, 12MB SmartCache, 35W
Integrated Graphics
  • 8th Gen Intel® Celeron® G4900T
    Intel® UHD Graphics 610
    12 Execution Units, 350 → 1050 MHz
  • 8th Gen Intel® Pentium® Gold G5400T
    Intel® UHD Graphics 610
    12 Execution Units, 350 → 1050 MHz
  • 8th Gen Intel® Pentium® Gold G5500T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1100 MHz
  • 8th Gen Intel® Core™ i3-8100T
    Intel® UHD Graphics 630
    23 Execution Units, 350 → 1100 MHz
  • 8th Gen Intel® Core™ i3-8300T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1150 MHz
  • 8th Gen Intel® Core™ i5-8400T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1050 MHz
  • 8th Gen Intel® Core™ i5-8500T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1100 MHz
  • 8th Gen Intel® Core™ i7-8700T
    Intel® UHD Graphics 630
    24 Execution Units, 350 → 1200 MHz
Memory
  • Memory Slots: 2 SODIMM slots
  • Memory Type: Single or Dual Channel DDR4 Memory
  • Memory Speed:
    • 2400MHz - On Intel Celeron, Pentium, and Core i3.
    • 2666MHz - On Intel Core i5 and i7.
  • Memory Per Slot:
    4GB 8GB 16GB
Memory Configurations
4GB 8GB 16GB 32GB
Storage
  • 256GB 512GB 1TB
    M.2 PCIe Gen 3 x4 NVME SSD
  • 500GB 1TB 2TB
    5400 rpm or 7200 rpm 2.5" SATA Hard Drive
SlotsExpansion Slots
  • No Expansion slot
SATA
  • 1 x SATA slot
    For 2.5-inch HDD/SSD.
M.2
  • 1 x M.2 2230 slot
    For WiFi and Bluetooth combo card
  • 1 x M.2 2230/2280 slot
    For SSD/Intel Optane

Connectivity

Dell Optiplex 3060 Micro
Wi-Fi
  • No Wireless LAN Card
  • Qualcomm QCA9377
    Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 4.1
  • Qualcomm QCA61x4a
    Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 4.2
  • Intel Wireless-AC 9560
    Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5
Bluetooth
Bluetooth 4.1 Bluetooth 4.2 Bluetooth 5
Optional
EthernetIntel Realtek RTL8111HSD-CG Gigabit Ethernet controller
Speed: 10/100/1000 Mbps.

Software

Dell Optiplex 3060 Micro
OS
  • Windows 10 Home Windows 10 Pro
    Upgradable to Windows 11
  • Ubuntu Linux 20.04 LTS
  • NeoKylin 7.0 (China only)
Built-in Apps
Microsoft Office 30 Day Trial

Camera & Audio

Dell Optiplex 3060 Micro
Audio
  • One 2W Speaker
  • Audio controller
    • Realtek ALC3234
  • External Ports
    • 1 x Universal Audio Jack
      Front
    • 1 x Audio port
      Line-out audio port with re-tasking to Line-in (Rear).

Misc

Dell Optiplex 3060 Micro
WarrantyLimited Hardware Warranty

Dell Optiplex 3060 Micro Price

Here is the latest price update for Dell Optiplex 3060 Micro.

Dell Optiplex 3060 Micro Motherboard

Here is the photo or diagram of the Dell Optiplex 3060 Micro system board.

Dell Optiplex 3060 Micro Motherboard
Source: Dell
