Lenovo ThinkStation P620 Tower Specs

Here's what you need to know about Lenovo ThinkStation P620 Tower Specs, including price, processors, memory, graphics, storage, ports, and more.

Lenovo ThinkStation P620 Tower Specs

The 2020 Lenovo ThinkStation P620 Tower features 280W AMD Zen+ (Picasso) 12-core AMD Ryzen Threadripper PRO 3945WX up to a 280W 64-core AMD Ryzen Threadripper PRO 3995WX with a boost speed up to 4.20 GHz. The Intel WRX80 Chipset motherboard inside Lenovo ThinkStation P620 Tower has 8 memory slots that support up to 1TB of 3200MHz 8 channels DDR4 ECC memory.

What's New in Lenovo ThinkStation P620 Tower

Here's what you need to know about the Lenovo ThinkStation P620 Tower.

  • AMD WRX80 Chipset.
  • Up to AMD Ryzen™ Threadripper™ PRO 3995WX
    64C/128T, 2.70 → 4.20 GHz, 32MB L2, 256MB L3 Cache, 280W TDP.
  • Up to NVIDIA® Quadro® RTX™️ A6000 with 48GB GDDR6 with ECC VRAM.
  • Up to AMD Radeon™ Pro VII - 16GB HBM2 VRAM.
  • Up to 11 x 2TB NVMe PCIe SSD.
  • Up to 5 x 4TB 3.5” 7200 RPM HDD.
  • Up to 1TB 8 channels 3200MHz DDR4 ECC Memory.
  • More Features
    • Wi-Fi 5 and Bluetooth 5.1.
    • PCIe Gen 4.0 Ready.

Lenovo ThinkStation P620 Tower Full Specifications

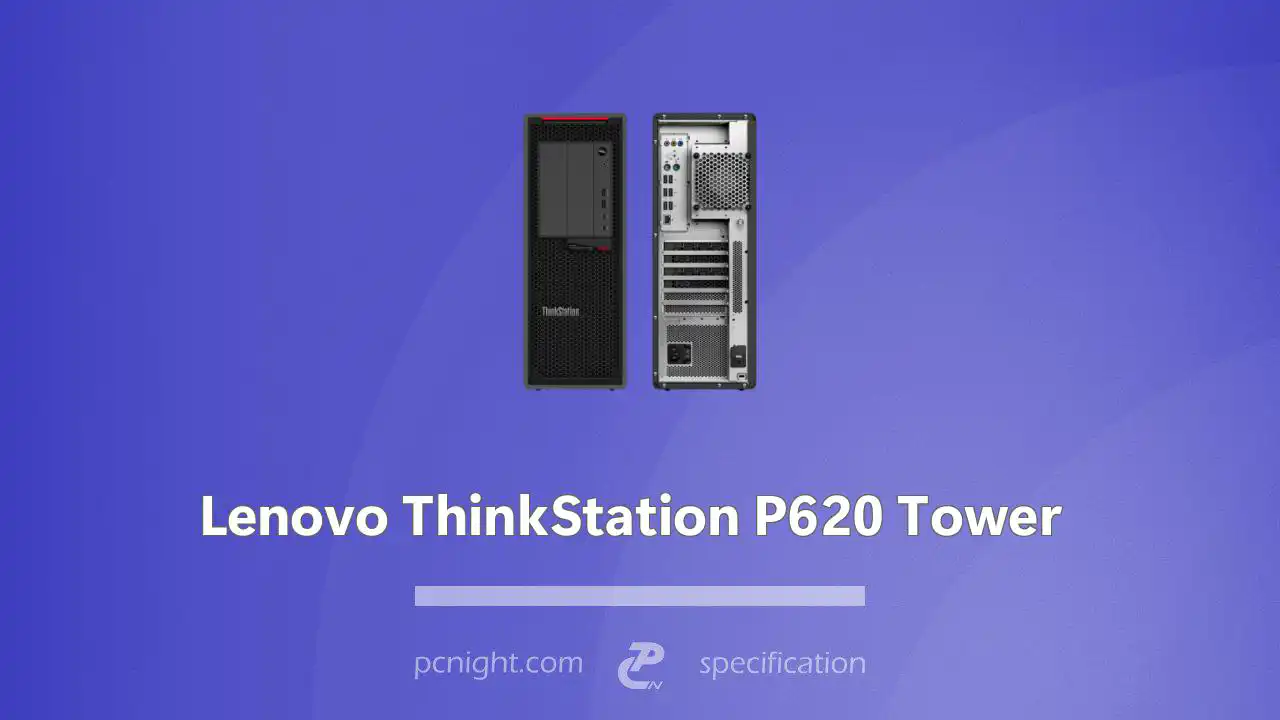

Lenovo ThinkStation P620 Tower image
Lenovo ThinkStation P620 Tower

Availability

Released2020
Release InfoAnnounced on September 03, 2020.
Applicable Models
  • Lenovo ThinkStation P620 Tower
  • 2020 Lenovo ThinkStation P620 Tower
  • 2021 Lenovo ThinkStation P620 Tower
Lenovo ThinkStation P620 Tower Price
Lenovo ThinkStation P620 30E000MKUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 5945WX 4.10 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - AMD WRX80 Chip - Windows 11 Pro 64-bi
Lenovo ThinkStation P620 30E000MKUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 5945WX 4.10 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - AMD WRX80 Chip - Windows 11 Pro 64-bi
By Lenovo
$2,647.95
Lenovo ThinkStation P620 30E000DQUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 3945WX 4 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower
Lenovo ThinkStation P620 30E000DQUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 3945WX 4 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower
By Lenovo
$4,399.00
Lenovo ThinkStation P620 30E00098US Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 3945WX 4 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - Windows 10 Pro 64-bit - NVIDIA Quadro P2
Lenovo ThinkStation P620 30E00098US Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 3945WX 4 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - Windows 10 Pro 64-bit - NVIDIA Quadro P2
By Lenovo
$4,799.00
Lenovo ThinkStation P620 30E0008SUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 3945WX 4 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - Windows 10 Pro 64-bit - NVIDIA Quadro P1
Lenovo ThinkStation P620 30E0008SUS Workstation - 1 x AMD Ryzen Threadripper PRO Dodeca-core (12 Core) 3945WX 4 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - Windows 10 Pro 64-bit - NVIDIA Quadro P1
By Lenovo
$4,799.00
Lenovo ThinkStation P620 30E000ARUS Workstation - 1 x AMD Ryzen Threadripper PRO Hexadeca-core (16 Core) 3955WX 3.90 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - Graphite Black - Windows 10 Pro 64-
Lenovo ThinkStation P620 30E000ARUS Workstation - 1 x AMD Ryzen Threadripper PRO Hexadeca-core (16 Core) 3955WX 3.90 GHz - 32 GB DDR4 SDRAM RAM - 1 TB SSD - Tower - Graphite Black - Windows 10 Pro 64-
By Lenovo
$7,975.46
Lenovo ThinkStation P620 30E0005RUS Workstation - 1 x Ryzen Threadripper PRO 3975WX - 32GB RAM - 1TB SSD - Tower - Graphite Black
Lenovo ThinkStation P620 30E0005RUS Workstation - 1 x Ryzen Threadripper PRO 3975WX - 32GB RAM - 1TB SSD - Tower - Graphite Black
By Lenovo
$5,599.00

Exterior

Lenovo ThinkStation P620 Tower
Dimensions6.5 x 18.1 x 17.6 inches (165 x 460 x 446 mm)
With feet.
WeightMax at 52.91 lbs (24 kg)
Colors
Black
PortsFront
  • 2 x USB-A
    USB 3.2 Gen 2 (10Gbps).
  • 2 x USB-C
    USB 3.2 Gen 2 (10 Gbps).
  • 1 x Headset
    Headphone/Microphone combo 3.5mm jack.
  • 1 x Microphone
    3.5mm jack.
  • 1 x Optical drive.
Rear
  • 6 x USB-A
    2 x USB 2.0 (480 Mbps).
    4 x USB 3.2 Gen 2 (10 Gbps).
  • 1 x RJ-45
    10 Gigabit Ethernet.
  • 2 x PS/2 ports
    For keyboard and mouse.
  • 3 x Audio ports
    3.5mm jack.
  • 1 x Power connector
Rear (optional)
  • 1 x Thunderbolt™ 3
  • 1 x Serial
    9-pin

Chasis

Lenovo ThinkStation P620 Tower
Form FactorTower (33L)
Power Supply1000W
80+ Platinum 92% Efficiency Autosensing 100 - 240V
Bays
  • 1 x 3.5" disk bay
    standard
  • 3 x 3.5" disk bay
    optional,
    2 x bays come with 3rd disk or Storage Bay Upgrade Kit
    1 x bay via flex bay.
Flex Bays 1 x flex bay, supports one of the following:
  • Front Access Storage Enclosure
  • 5.25" Slim ODD and HDD cage
Optical Drives1 x 9.0mm optical drive
Optional, DVD-ROM, DVD±RW.

Internal Specs

Lenovo ThinkStation P620 Tower
ChipsetIntel WRX80 Chipset
Processor
Integrated Graphics
  • AMD Ryzen™ Threadripper™ PRO 3945WX
    Not Available
  • AMD Ryzen™ Threadripper™ PRO 3955WX
    Not Available
  • AMD Ryzen™ Threadripper™ PRO 3975WX
    Not Available
  • AMD Ryzen™ Threadripper™ PRO 3995WX
    Not Available
Discrete GraphicsNVIDIA® Quadro®
  • P620 - 2GB GDDR5
    40W, 4 x miniDP 1.4.
  • P1000 - 4GB GDDR5
    50W, 4 x miniDP 1.4.
  • P2200 - 5GB GDDR5
    75W, 4 x DP 1.4.
  • T600 - 4GB GDDR6
    40W, 4 x miniDP 1.4.
  • T1000 - 4GB GDDR6
    50W, 4 x miniDP 1.4.
  • GV100 - 32GB HBM2
    250W, 4 x DP 1.4.
NVIDIA® Quadro® RTX™️
  • 4000 - 8GB GDDR6
    160W, 3 x DP1.4, 1 x VirtualLink.
  • 5000 - 16GB GDDR6
    265W, 4 x DP1.4, 1 x VirtualLink.
  • 6000 - 24GB GDDR6
    295W, 4 x DP1.4, 1 x VirtualLink.
  • 8000 - 48GB GDDR6
    295W, 4 x DP1.4, 1 x VirtualLink.
  • A4000 - 16GB GDDR6 with ECC
    140W, 4 x DP 1.4a.
  • A5000 - 24GB GDDR6 with ECC
    230W, 4 x DP 1.4a.
  • A6000 - 48GB GDDR6 with ECC
    300W, 4 x DP 1.4a.
AMD Radeon™ Pro
  • WX 3200 - 4GB GDDR5
    50W, 4 x miniDP 1.4.
  • W5500 - 8GB GDDR6
    125W, 4 x DP 1.4.
  • W5700 - 8GB GDDR6
    205W, 5 x miniDP 1.4, 1 x USB-C.
  • VII - 16GB HBM2
    250W, 6 x DP 1.4.
Memory
32GB 64GB 128GB 256GB 512GB 1024GB
  • Memory Slots: 8 x DIMM slots, 8 channels capable
  • Memory Type: DDR4-3200 RDIMM ECC
  • Memory Speed: 3200 MHz
  • Memory Per Slot:
    4GB 8GB 16GB 32GB 64GB 128GB
Storage
  • 128GB 256GB 512GB 1TB 2TB
    M.2 PCIe SSD.
  • 1TB 2TB 4TB
    7200 rpm 3.5” SATA Hard Drive.
Storage Slots
  • Up to 5 x 3.5” SATA HDD
    SATA 6 Gb/s
  • Up to 9 x  M.2 2280 PCIe Gen 3.0 and 4.0 SSD
Storage Controllers
  • Onboard Intel RST PCIe RAID
    Interface: PCIe NVMe
    Supported RAID: 0/1/10/5.
  • Onboard Intel RSTe SATA RAID
    Interface: SATA 6.0 Gb/s
    Supported RAID: 0/1/10/5.
Slots
  • 4 x PCIe 4.0 x16
    full height, full length, links to CPU.
  • 2 x PCIe 4.0 x8
    full height, full length, links to CPU.
  • 1 x M.2 2230 slot
    For WiFi and Bluetooth combo card.
  • Up to 11 x M.2 2230/2280 slots
    2 x via onboard slots
    8 x via Quad M.2 to PCIe adapters (only supports PCIe 3.0 SSD)
    1 x via Single M.2 to PCIe adapter (only supports PCIe 3.0 SSD).

Connectivity

Lenovo ThinkStation P620 Tower
Wi-Fi
  • Intel® Wireless-AC 9260 Wi-Fi 5
    2 x 2 802.11 AC
  • No WLAN and Bluetooth
Bluetooth
Bluetooth 5.1
EthernetMarvell AQtion AQN-107 10GbE Ethernet
10/100/1000/10000 Mbps.

Software

Lenovo ThinkStation P620 Tower
OS
  • Windows 10 Pro
  • Ubuntu Linux LTS
  • No OS

Camera & Audio

Lenovo ThinkStation P620 Tower
AudioHigh Definition (HD) Audio, Realtek® ALC4050H codec

Misc

Lenovo ThinkStation P620 Tower
SecuritySecurity Chip
  • Discrete TPM 2.0, TCG certified
Physical Locks
  • (Optional) Access Panel Lock Kit with Common Key
  • (Optional) Access Panel Lock Kit with Unique Key
  • Kensington® Security Slot
Chassis Intrusion Switch
  • Chassis intrusion switch
BIOS Security
  • Administrator password
  • Power-on password
System Management
  • AMD Pro Manageability
Diagnostic
  • Photo-audio transfer with Lenovo PC Diagnostics for Android™ and iOS
  • ThinkStation® Diagnostics for Windows
  • Front 4-digit diagnostic
  • Lenovo UEFI Bootable Diagnostics
Warranty3-year limited onsite service with 9x5 NBD (for most models)
