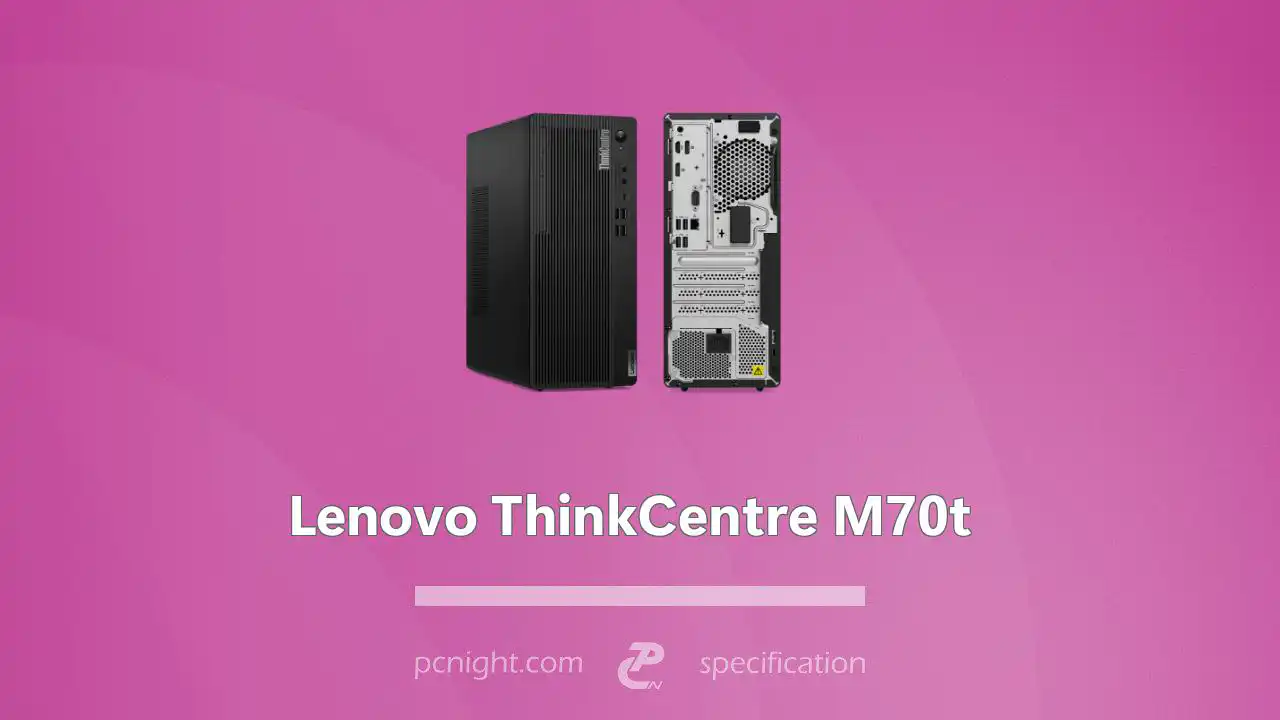

Lenovo ThinkCentre M70t Specs

Here's what you need to know about Lenovo ThinkCentre M70t Specs, including price, processors, memory, graphics, storage, ports, and more.

BY Evan Forrest May 25, 2020 04:22 am

The 2020 Lenovo ThinkCentre M70t features 58W 10th Generation Intel Comet Lake dual-core Intel Celeron G5900 up to a 65W 10-core Intel Core i9-10900F with a boost speed up to 5.20 GHz. The Intel H470 Chipset motherboard inside Lenovo ThinkCentre M70t has four memory slots that support up to 128GB of 2933MHz dual-channel DDR4 memory.

What's New in Lenovo ThinkCentre M70t

Here's what you need to know about the Lenovo ThinkCentre M70t.

Intel® H470 Chipset.
Supports 10th Intel® Comet Lake Series Processors.
Up to 10th Gen Intel® Core™ i9-10900
10C/20T, 2.80 → 5.20 GHz, 20MB SmartCache, 65W TDP.
Up to 1 x 1TB NVMe PCIe Gen 3 SSD.
Up to 2 x 2TB 2.5” HDD.
Up to 128GB dual-channel 2933 MHz DDR4 Memory.
More Features
- Optional 3-in-1 card reader.
- Optional mono 2W speaker.
- Up to Wi-Fi 6 and Bluetooth 5.2.

Lenovo ThinkCentre M70t Full Specifications

	Lenovo ThinkCentre M70t Compare
Availability
Released	2020
Release Info	Announced on May 19, 2020.
Applicable Models	Lenovo ThinkCentre M70t Lenovo ThinkCentre M70t Gen 1 Lenovo ThinkCentre M70t (10th Intel) Lenovo ThinkCentre M70t (Intel H470)
Generations	2022 Lenovo ThinkCentre M70t Gen 3 Compare 2020 Lenovo ThinkCentre M75t Gen 2 Compare 2020 Lenovo ThinkCentre M70t Current

Exterior	Lenovo ThinkCentre M70t
Dimensions	5.7 x 11.7 x 13.6 inches (145 x 296 x 346 mm)
Weight	10.6 lbs (4.8 kg)
Colors	Black
Keyboard and Trackpad	Keyboard Lenovo Calliope Keyboard (USB connector), black Lenovo Calliope Wireless Keyboard (2.4GHz via USB receiver), black Lenovo Traditional Keyboard (USB connector), black No keyboard Mouse Lenovo Calliope Mouse (USB connector), black Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black Lenovo Fingerprint Mouse (USB connector), Windows Hello support, black No mouse
Ports	Front 1 x USB-C USB 3.2 Gen 1 (5 Gpbs). 4 x USB-A 2 x USB 3.2 Gen 1 (5 Gbps). 2 x USB 3.2 Gen 2 (10 Gbps). 1 x Card reader Optional 1 x Microphone 3.5mm jack. 1 x Headphone 3.5mm jack. Rear 4 x USB-A 4 x USB 2.0 (480 Mbps). 1 x HDMI 2 x DisplayPort 1 x RJ-45 Gigabit Ethernet port. 1 x Serial 2 x PS/2 ports Optional, for keyboard and mouse. 1 x Line-out port 3.5mm jack. 1 x Power Connector

Chasis	Lenovo ThinkCentre M70t
Form Factor	Tower 13.6L
Power Supply	180W 80+ Bronze 85% Efficiency 260W 80+ Bronze 85% Efficiency 310W 80+ Platinum 92% Efficiency 380W 80+ Platinum 92% Efficiency
Bays	1 x 2.5" disk bay optional, or bay comes with disk. 1 x 3.5" disk bay 1 x slim ODD bay
Optical Drives	Optional DVD-ROM SATA 1.5Gb/s, slim (9.0mm) DVD burner (DVD±RW) SATA 1.5Gb/s, slim (9.0mm)
Chasis Information	Optional dust filter. Supports Smart Power On.

Internal Specs	Lenovo ThinkCentre M70t
Chipset	Intel H470 Chipset
Processor	10th Gen Intel® Celeron® G5900 2C/2T, 3.40 GHz, 2MB SmartCache, 58W 10th Gen Intel® Celeron® G5905 2C/2T, 3.50 GHz, 4MB SmartCache, 58W 10th Gen Intel® Celeron® G5925 2C/2T, 3.60 GHz, 4MB SmartCache, 58W 10th Gen Intel® Pentium® Gold G6400 2C/4T, 4.00 GHz, 4MB SmartCache, 58W 10th Gen Intel® Pentium® Gold G6500 2C/4T, 4.10 GHz, 4MB SmartCache, 58W 10th Gen Intel® Pentium® Gold G6600 2C/4T, 4.20 GHz, 4MB SmartCache, 58W 10th Gen Intel® Core™ i3-10100 4C/8T, 3.60 → 4.30 GHz, 6MB SmartCache, 65W 10th Gen Intel® Core™ i3-10300 4C/8T, 3.70 → 4.40 GHz, 8MB SmartCache, 65W 10th Gen Intel® Core™ i3-10320 4C/8T, 3.80 → 4.60 GHz, 8MB SmartCache, 65W 10th Gen Intel® Core™ i5-10400 6C/12T, 2.90 → 4.30 GHz, 12MB SmartCache, 65W 10th Gen Intel® Core™ i5-10500 6C/12T, 3.10 → 4.50 GHz, 12MB SmartCache, 65W 10th Gen Intel® Core™ i5-10600 6C/12T, 3.30 → 4.80 GHz, 12MB SmartCache, 65W 10th Gen Intel® Core™ i7-10700 8C/16T, 2.90 → 4.80 GHz, 16MB SmartCache, 65W 10th Gen Intel® Core™ i7-10700F 8C/16T, 2.90 → 4.80 GHz, 16MB SmartCache, 65W 10th Gen Intel® Core™ i9-10900 10C/20T, 2.80 → 5.20 GHz, 20MB SmartCache, 65W 10th Gen Intel® Core™ i9-10900F 10C/20T, 2.80 → 5.20 GHz, 20MB SmartCache, 65W
Integrated Graphics	10th Gen Intel® Celeron® G5900 Intel® UHD Graphics 610 350 → 1050 MHz 10th Gen Intel® Celeron® G5905 Intel® UHD Graphics 610 350 → 1050 MHz 10th Gen Intel® Celeron® G5925 Intel® UHD Graphics 610 350 → 1050 MHz 10th Gen Intel® Pentium® Gold G6400 Intel® UHD Graphics 610 350 → 1050 MHz 10th Gen Intel® Pentium® Gold G6500 Intel® UHD Graphics 630 350 → 1100 MHz 10th Gen Intel® Pentium® Gold G6600 Intel® UHD Graphics 630 350 → 1100 MHz 10th Gen Intel® Core™ i3-10100 Intel® UHD Graphics 630 23 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i3-10300 Intel® UHD Graphics 630 23 Execution Units, 350 → 1150 MHz 10th Gen Intel® Core™ i3-10320 Intel® UHD Graphics 630 23 Execution Units, 350 → 1150 MHz 10th Gen Intel® Core™ i5-10400 Intel® UHD Graphics 630 24 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i5-10500 Intel® UHD Graphics 630 24 Execution Units, 350 → 1150 MHz 10th Gen Intel® Core™ i5-10600 Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Core™ i7-10700 Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Core™ i7-10700F Not Available 10th Gen Intel® Core™ i9-10900 Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Core™ i9-10900F Not Available
Discrete Graphics	NVIDIA® GeForce® GT 730 - 2GB GDDR5 1 x HDMI 1.4 1 x VGA AMD® Radeon™ 520 - 2GB GDDR5 2 x DisplayPort 1.2 RX 550X - 4GB GDDR5 1 x HDMI 2.0 1 x VGA 1 x DisplayPort 1.4
Memory	4GB 8GB 16GB 32GB 64GB 128GB Memory Slots: 4 DIMM slots Memory Type: Dual Channel DDR4 Memory Memory Speed: 2666 MHz 2933 MHz Memory Per Slot: 4GB 8GB 16GB 32GB
Storage	Up to 3 x drives 1 x M.2 PCIe SSD 2242 PCIe 3.0 x 2 2280 PCIe 3.0 x 4 Intel Optane Memory M10 1 x 2.5" or 3.5" SATA Hard Drive 1 x 2.5" SATA Hard Drive
Slots	1 x PCIe 3.0 x16 full-height, (length < 215mm). 1 x PCIe 3.0 x1 full-height, (length < 215mm). 1 x M.2 2230 slot for WiFi and Bluetooth combo card. 1 x M.2 2242/2280 slot for PCIe solid-state drive.

Connectivity	Lenovo ThinkCentre M70t
Wi-Fi	No Wireless LAN Card Realtek RTL8822CE Dual band 2.4 GHz/5 GHz 2x2 WiFi-6 (802.11ac) Bluetooth 5.0 Intel Wireless-AC 9462 Dual band 2.4 GHz/5 GHz 1x1 WiFi-6 (802.11ac) Bluetooth 5.0 Intel Wireless-AC 9560 Dual band 2.4 GHz/5 GHz 2x2 WiFi-6 (802.11ac) Bluetooth 5.0 Intel AX201 Wi-Fi 6 Dual band 2.4 GHz/5 GHz 2x2 WiFi-6 (802.11ax) Bluetooth 5.1
Bluetooth	Optional Bluetooth 5.x
Ethernet	Intel Ethernet Connection I219-V Gigabit Ethernet 10/100/1000 Mbps with Wake-on-LAN support.
