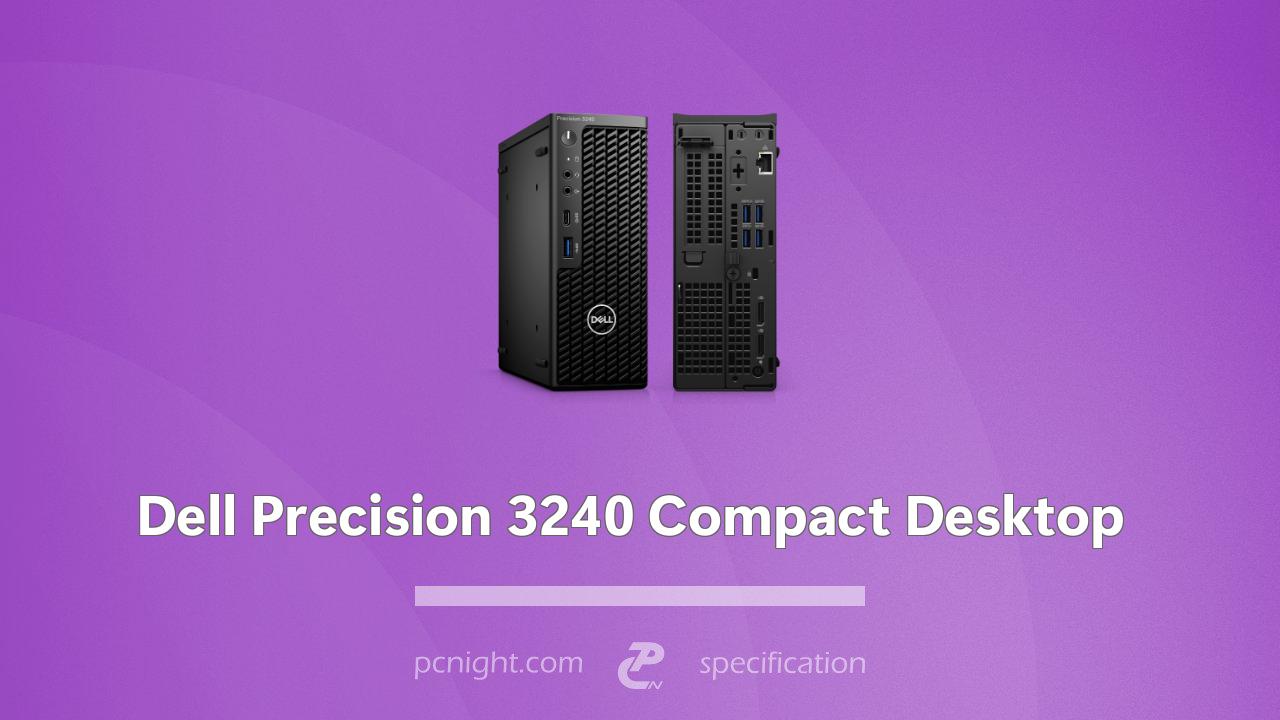

Dell Precision 3240 Compact Workstation Specs

Here's what you need to know about Dell Precision 3240 Compact Workstation Specs, including price, processors, memory, graphics, storage, ports, and more.

BY Evan Forrest August 28, 2020 04:22 pm

The Dell Precision 3240 Compact Workstation features 65W 10th Generation Intel Comet Lake quad-core Intel Core i3-10100 up to a 80W 10-core Intel Xeon W-1290 with a boost speed up to 5.20 GHz. The Intel® W480 PCH Chipset motherboard inside Dell Precision 3240 Compact Workstation has two memory slots that support up to 64GB of 2933MHz ECC & Non-ECC dual-channel DDR4 memory.

What's New in Dell Precision 3240 Compact Workstation

Here's what you need to know about the Dell Precision 3240 Compact Workstation.

Intel® W480 PCH Chipset
Supports 10th Gen Intel Core Processors.
Up to 65W Intel® Core™ i9-10900 (10 cores/20 threads, up to 5.20 GHz).
Up to 80W Intel® Xeon® W-1290 (10 cores/20 threads, up to 5.20 GHz).
Up to NVIDIA® Quadro® RTX 3000 with 6GB GDDR6.
Up to 64GB 2933MHz ECC or Non-ECC dual-channel DDR4 memory.
Up to 2 x 2TB PCIe Gen 3 NVMe SSD.
Up to 240W AC Power Adapter.

Dell Precision 3240 Compact Workstation Full Specifications

	Dell Precision 3240 Compact Workstation See at Amazon Compare
Availability
Released	2020
Release Info	Announced on August 26, 2020.
Pricing	Starting at $889.00 i5-10500 \| 8GB \| 256 SSD

Exterior	Dell Precision 3240 Compact Workstation
Dimensions	7.03” x 7.40” x 2.76” (178.65 x 188.10 x 70.20 mm)
Weight	Starting at 3.77 lbs. (1.71 kg)
Colors	Black
Keyboard and Trackpad	Keyboard Dell KB813 Smart Card Keyboard (US) Dell KB216 Wired Keyboard English No Keyboard Mouse Dell Wired Mouse MS3220 - Black Dell Optical Mouse - MS116 (Black) Dell Wired Mouse with Fingerprint Reader No Mouse
Ports	Front 1 x USB-A USB 3.2 Gen 2 (10 Gbps) with PowerShare. 1 x USB-C USB 3.2 Gen 2 (10 Gbps) 1 x Headset jack 1 x Audio Line out/Line in port Rear 4 x USB-A 1 x USB 3.2 Gen 1 (5 Gbps). 1 x USB 3.2 Gen 1 (5 Gbps) with Smart Power On. 2 x USB 3.2 Gen 2 (10 Gbps). 2 x DisplayPort 1.4 Supports 4K@120Hz. 1 x RJ-45 Gigabit Ethernet. 1 x Optional Port VGA, DisplayPort++ 1.4, HDMI 2.0, or USB-C with DP 1.4-Alt mode. 1 x Kensington Lock Slot 1 x Power Adapter Port

Chasis	Dell Precision 3240 Compact Workstation
Form Factor	Compact Form Factor
Power Supply	180W 7.4mm Barrel Power Adapter 240W 7.4mm Barrel Power Adapter. Required for discrete graphics card configurations.

Internal Specs	Dell Precision 3240 Compact Workstation
Chipset	Intel® W480 PCH Chipset
Processor	10th Gen Intel® Core™ i3-10100 4C/8T, 3.60 → 4.30 GHz, 6MB SmartCache, 65W 10th Gen Intel® Core™ i5-10500 6C/12T, 3.10 → 4.50 GHz, 12MB SmartCache, 65W 10th Gen Intel® Core™ i5-10600 6C/12T, 3.30 → 4.80 GHz, 12MB SmartCache, 65W 10th Gen Intel® Core™ i7-10700 8C/16T, 2.90 → 4.80 GHz, 16MB SmartCache, 65W 10th Gen Intel® Core™ i9-10900 10C/20T, 2.80 → 5.20 GHz, 20MB SmartCache, 65W 10th Gen Intel® Xeon® W-1250 6C/12T, 3.30 → 4.70 GHz, 12MB SmartCache, 80W 10th Gen Intel® Xeon® W-1270 8C/16T, 3.40 → 5.00 GHz, 16MB SmartCache, 80W 10th Gen Intel® Xeon® W-1290 10C/20T, 3.20 → 5.20 GHz, 20MB SmartCache, 80W
Integrated Graphics	10th Gen Intel® Core™ i3-10100 Intel® UHD Graphics 630 23 Execution Units, 350 → 1100 MHz 10th Gen Intel® Core™ i5-10500 Intel® UHD Graphics 630 24 Execution Units, 350 → 1150 MHz 10th Gen Intel® Core™ i5-10600 Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Core™ i7-10700 Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Core™ i9-10900 Intel® UHD Graphics 630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Xeon® W-1250 Intel® UHD Graphics P630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Xeon® W-1270 Intel® UHD Graphics P630 24 Execution Units, 350 → 1200 MHz 10th Gen Intel® Xeon® W-1290 Intel® UHD Graphics P630 24 Execution Units, 350 → 1200 MHz
Discrete Graphics	NVIDIA® Quadro® P400 - 2GB GDDR5 3 x mini DisplayPort 1.4 P620 - 2GB GDDR5 4 x mini DisplayPort 1.4 P1000 - 4GB GDDR5 4 x mini DisplayPort 1.4 RTX 3000 - 6GB GDDR6 4 x mini DisplayPort 1.4
Memory	8GB 16GB 32GB 64GB Memory Slots: 2 x SO-DIMM slots Memory Type: ECC and Non-ECC Dual-Channel DDR4 Memory. Memory Speed: 2666 MHz For 10th Generation Intel Core i3/i5/Xeon W-1250 processors. 2933 MHz For 10th Generation Intel Core i7/i9/Xeon W-1270/W1290 processors. Memory Size per Slot: 8GB 16GB 32GB
Storage	256GB 512GB 1TB 2TB M.2 PCIe Gen 3 x4 or Gen 4 x4 NVME SSD 500GB 1TB 2TB 5400 rpm or 7200 rpm 2.5" SATA Hard Drive
Slots	Expansion Slots 1 x PCIe x8 slot PCIe Gen 3 x8, Half-height SATA 1 x SATA slot for 3.5-inch/2.5-inch hard drive. M.2 1 x M.2 2230 slot For WiFi and Bluetooth combo card 2 x M.2 2230/2280 slot For SSD/Intel Optane.

Connectivity	Dell Precision 3240 Compact Workstation
Wi-Fi	Qualcomm QCA61x4a (DW1820) Up to 867 Mbps Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.1 Intel AX201 Up to 2400 Mbps Dual band 2.4 GHz/5 GHz WiFi-6 (802.11ax) Bluetooth 5.1 No Wireless LAN Card
Bluetooth	Bluetooth 5.1 Optional
Ethernet	Intel i219-LM Gigabit Ethernet controller Speed: 10/100/1000 Mbps.

Software	Dell Precision 3240 Compact Workstation
OS	Windows 11 Home, 64-bit Windows 11 Pro, 64-bit Windows 11 Pro National Academic, 64-bit Windows 11 Pro for Workstations, 64-bit Windows 10 Home, 64-bit Windows 10 Pro, 64-bit Windows 10 Pro National Academic, 64-bit Windows 10 IoT Enterprise 2019 LTSC (OEM only) Windows 10 Pro for Workstation, 64-bit RHEL 8.4 Ubuntu 18.04 LTS, 64-bit Ubuntu 20.04 LTS, 64-bit
Built-in Apps	Dell Optimizer for Precision Microsoft Office 30 Day Trial

Camera & Audio	Dell Precision 3240 Compact Workstation
Audio	One 2W Speaker (optional) Audio controller Realtek ALC3246 4 Channel High Definition Audio External Ports 1 x Universal Audio Jack Front 1 x Audio port Line-out audio port with re-tasking to Line-in (Front).
