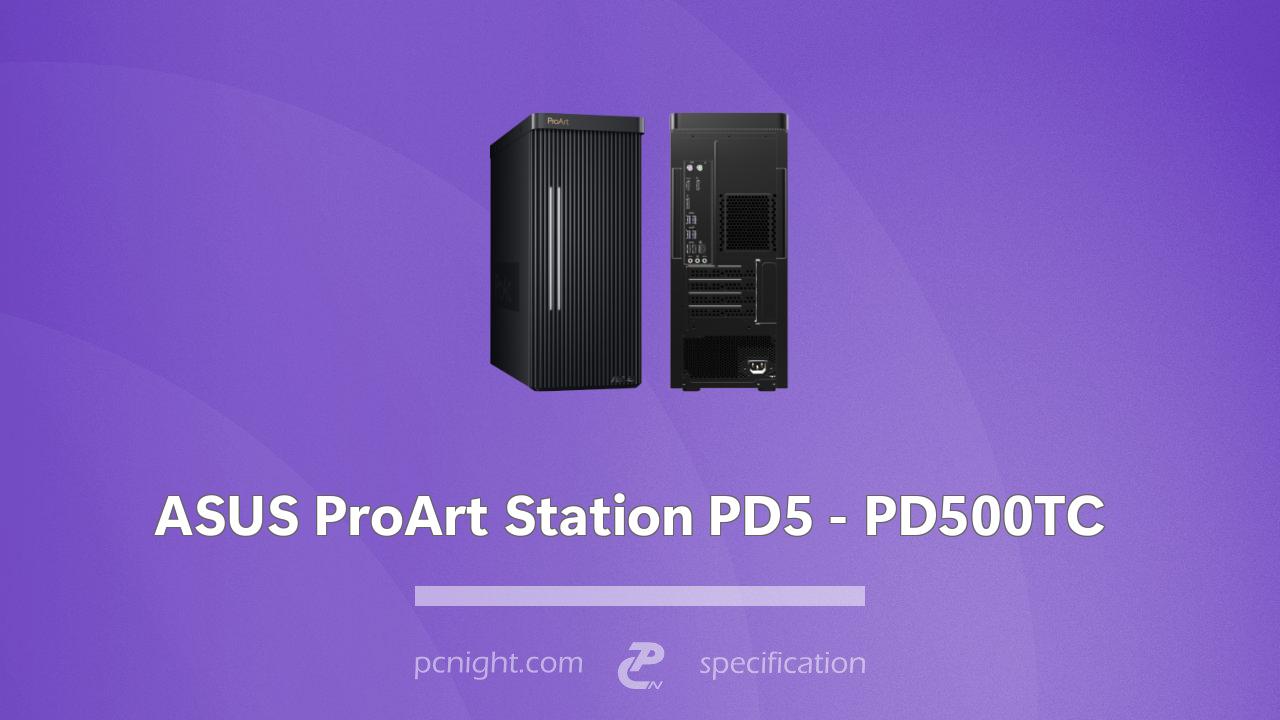

ASUS ProArt Station PD5 - PD500TC Specs

Here's what you need to know about ASUS ProArt Station PD5 - PD500TC Specs, including price, processors, memory, graphics, storage, ports, and more.

BY Evan Forrest September 02, 2021 09:33 pm

The 2021 ASUS ProArt Station PD5 - PD500TC features 65W 11th Generation Intel Rocket Lake 6-core Intel Core i5-11500 up to a 65W 8-core Intel Core i9-11900 with a boost speed up to 5.20 GHz. The Intel® B560 Chipset motherboard inside ASUS ProArt Station PD5 - PD500TC has four memory slots that support up to 128GB of 3200MHz dual-channel DDR4 memory.

What's New in ASUS ProArt Station PD5 - PD500TC

Here's what you need to know about the ASUS ProArt Station PD5 - PD500TC.

11th Generation Intel Rocket Lake Processors.
Intel® B560 Chipset
Up to 65W Intel Core i9-11900 (8 cores, 16 threads, 16MB Cache, Up to 5.2 GHz)
Up to 128GB of 3200 MHz Dual-Channel DDR4 Memory
Up to NVIDIA® GeForce RTX™ 3070 (8GB GDDR6)
Up to NVIDIA® RTX™ A2000 (6GB GDDR6)
Up to 700W 80+ Bronze PSU
2 x M.2 slots and 6 x SATA ports
ASUS Lumiwiz LED indicators - Embedded in the front chassis, which illuminates a pair of light bars to indicate the status of the CPU, VGA, and more.
ProArt Creator Hub - is your personal portal for monitoring your PD5’s status, personalizing settings, or optimizing your workflow.
ISV Certified - To ensure ProArt Station PD5 works as expected with professional applications from the world’s leading software companies.
More
- Built-in handle for mobility
- Physical latch for the power button
- Tool-free HDD tray for easy upgrade
- Dolby Atmos® support
- ASUS AI noise-canceling technology
- Wi-Fi 6

ASUS ProArt Station PD5 - PD500TC Full Specifications

	ASUS ProArt Station PD5 - PD500TC See at Amazon Compare
Availability
Released	2021
Release Info	Announced on September 2, 2021
Applicable Models	ASUS ProArt Station PD5 PD500TC

Exterior	ASUS ProArt Station PD5 - PD500TC
Dimensions	16.05 x 16.42 x 7.09” (407.6 x 417 x 18 mm)
Weight	22.05 lbs. (10.0 kg)
Colors	Black
Keyboard and Trackpad	Wireless optical mouse Wired optical mouse Wireless keyboard Wired keyboard
Ports	Front 2 x USB-A USB 3.2 Gen 1 (5Gbps) 1 x USB-C USB 3.2 Gen 1 (5Gbps) 1 x 2-in-1 SD/MMC card reader 1 x Combo audio jack 3.5mm Rear 6 x USB-A 2 x USB 2.0 (480Mbps) 4 x USB 3.2 Gen 1 (5Gbps) 2 x DisplayPort 1.2 1 x HDMI 1.4 1 x RJ-45 Killer™ E3000 2.5 Gigabit Ethernet 2 x PS2 3 x Audio port 7.1 channel audio

Chasis	ASUS ProArt Station PD5 - PD500TC
Form Factor	Mid Tower
Power Supply	550W 80+ Bronze peak 550W 550W 80+ Gold peak 550W 700W 80+ Bronze peak 750W

Internal Specs	ASUS ProArt Station PD5 - PD500TC
Chipset	Intel® B560 Chipset
Processor	11th Gen Intel® Core™ i5-11500 6C/12T, 2.70 → 4.60 GHz, 12MB SmartCache, 65W 11th Gen Intel® Core™ i7-11700 8C/16T, 2.50 → 4.90 GHz, 16MB SmartCache, 65W 11th Gen Intel® Core™ i9-11900 8C/16T, 2.50 → 5.20 GHz, 16MB SmartCache, 65W
Integrated Graphics	11th Gen Intel® Core™ i5-11500 Intel® UHD Graphics 750 32 Execution Units, 350 → 1300 MHz 11th Gen Intel® Core™ i7-11700 Intel® UHD Graphics 750 32 Execution Units, 350 → 1300 MHz 11th Gen Intel® Core™ i9-11900 Intel® UHD Graphics 750 32 Execution Units, 350 → 1300 MHz
Discrete Graphics	NVIDIA® GeForce® RTX™ 3060 - 12GB GDDR6 RTX™ 3070 - 8GB GDDR6 LHR NVIDIA RTX™️ A2000 - 6GB GDDR6
Memory	Memory Slots: 4 DIMM slots Memory Type: Single or Dual Channel DDR4 Memory Memory Speed: 3200MHz Memory Per Slot: 8GB 16GB 32GB Memory Configurations 8GB 16GB 32GB 64GB 128GB 3200 MHz Dual-Channel DDR4 memory.
Storage	256GB 512GB 1TB 2TB M.2 PCIe NVME SSD 1TB 2TB 7200 RPM 3.5” SATA HDD
Slots	Expansion Slots 1 x PCIe x16 slot PCIe Gen 4.0, Full-height 2 x PCIe x1 slot PCIe Gen 3.0, Full-height SATA 6 x SATA slots For HDD and SSD. M.2 1 x M.2 2230 slot For WiFi and Bluetooth combo card 2 x M.2 2230/2280 slot For NVMe PCIe SSD

Connectivity	ASUS ProArt Station PD5 - PD500TC
Wi-Fi	Wi-Fi 5 Dual band 2.4 GHz/5 GHz WiFi-5 (802.11ac) Bluetooth 5.2 Wi-Fi 6 Dual band 2.4 GHz/5 GHz WiFi-6 (802.11ax) Bluetooth 5.2
Bluetooth	Bluetooth 5.0
Ethernet	Gigabit Ethernet controller 10/100/1000 Mbps.

Software	ASUS ProArt Station PD5 - PD500TC
OS	Windows 11 Home Windows 11 Pro
Built-in Apps	ProArt Creator Hub My ASUS Office 30-day Trial

Camera & Audio	ASUS ProArt Station PD5 - PD500TC
Audio	Audio controller High Definition 7.1 Channel Audio External Ports 1 x Combo audio port Front 3 x Audio ports 7.1 channel audio

Misc	ASUS ProArt Station PD5 - PD500TC
Security	BIOS Booting User Password Protection HDD User Password Protection and Security McAfee LiveSafe™ 30-day trial Trusted Platform Module (Firmware TPM)
In the box	Optional Wireless optical mouse Wired optical mouse Wireless keyboard Wired keyboard 3.5" HDD assembly kit
