Detailed Specs Comparison

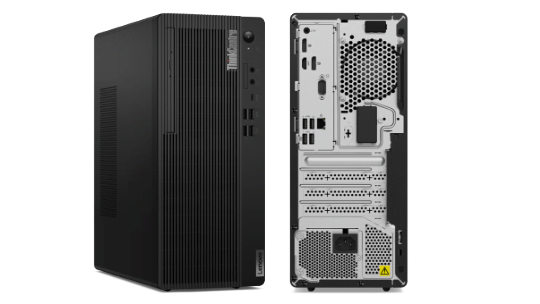

Compare Lenovo ThinkCentre M75t Gen 2

Pick a desktop to compare specs with Lenovo ThinkCentre M75t Gen 2 including price, processors, memory, graphics, storage, ports, and more.

BY Evan Forrest February 25, 2022

	Compare With Please enter device name or part of it Lenovo ThinkCentre M75t Gen 2 See at Amazon	Compare With Please enter device name or part of it
Key Features
What's new	AMD PRO 565 chipset. Supports AMD Athlon™ or AMD Ryzen™ 3 / 5 / 7 / 9 Processor. Up to AMD Ryzen 9 PRO 3900 12C/24T, 3.10 → 4.30 GHz, 64MB L3 Cache, 65W TDP. Up to 1 x 2TB NVMe PCIe Gen 3 SSD. Up to 2 x 2TB 2.5”/3.5” HDD. Up to 128GB dual-channel 3200MHz DDR4 Memory. Up to 310W with 80 Plus Platinum PSU. More Features Optional 3-in-1 card reader. Optional mono 2W speaker. Up to Wi-Fi 6 and Bluetooth 5.2.

Availability	Lenovo ThinkCentre M75t Gen 2
Released	2020
Release Info	Announced on September 29, 2020.
Applicable Models	Lenovo ThinkCentre M75t 2020 Lenovo ThinkCentre M75 Tower Lenovo ThinkCentre M75t Gen 2 Lenovo ThinkCentre M75t (AMD) Lenovo ThinkCentre M75t (AMD PRO 565 chipset)
Generations	2022 Lenovo ThinkCentre M70t Gen 3 Compare 2020 Lenovo ThinkCentre M75t Gen 2 Current 2020 Lenovo ThinkCentre M70t Compare

Exterior	Lenovo ThinkCentre M75t Gen 2
Dimensions	5.7 x 11.7 x 13.6 inches (145 x 296 x 346 mm)
Weight	10.6 lbs (4.8 kg)
Colors	Black
Keyboard and Trackpad	Keyboard Lenovo Calliope Keyboard (USB connector), black Lenovo Calliope Wireless Keyboard (2.4GHz via USB receiver), black Lenovo Traditional Keyboard (USB connector), black No keyboard Mouse Lenovo Calliope Mouse (USB connector), black Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black Lenovo Fingerprint Mouse (USB connector), Windows Hello support, black No mouse
Ports	Front 1 x USB-C USB 3.2 Gen 1 (5 Gpbs). 4 x USB-A 2 x USB 3.2 Gen 1 (5 Gbps). 2 x USB 3.2 Gen 2 (10 Gbps). 1 x Card reader Optional 1 x Microphone 3.5mm jack. 1 x Headphone 3.5mm jack. Rear 4 x USB-A 4 x USB 2.0 (480 Mbps). 1 x HDMI 1.4 2 x DisplayPort 1.4 1 x RJ-45 Gigabit Ethernet port. 1 x Serial Optional. 1 x Line-out port 3.5mm jack. 1 x Power Connector

Chasis	Lenovo ThinkCentre M75t Gen 2
Form Factor	Tower (13.6L)
Power Supply	180W 80+ Bronze 85% Efficiency 260W 80+ Bronze 85% Efficiency 310W 80+ Platinum 92% Efficiency
Bays	1 x 2.5" disk bay bay comes with disk. 1 x 3.5" disk bay 1 x slim ODD bay
Optical Drives	Optional DVD-ROM SATA 1.5Gb/s, slim (9.0mm) DVD burner (DVD±RW) SATA 1.5Gb/s, slim (9.0mm)
Chasis Information	EOU EOU design for HDD

Internal Specs	Lenovo ThinkCentre M75t Gen 2
Chipset	AMD PRO 565 chipset
Processor	AMD Athlon™ Silver 3050GE 2C/4T, 3.40 GHz, 1MB L2, 4MB L3 Cache, 35W AMD Athlon™ Gold PRO 3150G 4C/4T, 3.50 → 3.90 GHz, 1MB L2, 4MB L3 Cache, 65W AMD Ryzen™ 3 3200G 4C/4T, 3.60 → 4.00 GHz, 2MB L2, 4MB L3 Cache, 65W AMD Ryzen™ 3 4300G 4C/8T, 3.50 → 4.00 GHz, 2MB L2 Cache, 4MB L3 Cache, 65W AMD Ryzen™ 3 5300G 4C/8T, 4.00 → 4.20 GHz, 2MB L2, 8 MB L3 Cache, 65W AMD Ryzen™ 3 4350G 4C/8T, 3.80 → 4.00 GHz, 2MB L2 Cache, 4MB L3 Cache, 65W AMD Ryzen™ 3 5350G 4C/8T, 4.00 → 4.20 GHz, 2MB L2, 8 MB L3 Cache, 65W AMD Ryzen™ 5 4600G 6C/12T, 3.70 → 4.20 GHz, 3MB L2 Cache, 8MB L3 Cache, 65W AMD Ryzen™ 5 5600G 6C/12T, 3.90 → 4.40 GHz, 3MB L2, 16 MB L3 Cache, 65W AMD Ryzen™ 5 PRO 3350G 4C/8T, 3.60 → 4.00 GHz, 2MB L2, 4MB L3 Cache, 65W AMD Ryzen™ 5 3400G 4C/8T, 3.70 → 4.20 GHz, 2MB L2, 4MB L3 Cache, 65W AMD Ryzen™ 5 3600 6C/12T, 3.60 → 4.20 GHz, 32MB Cache, 65W AMD Ryzen™ 5 PRO 4650G 6C/12T, 3.70 → 4.20 GHz, 3MB L2 Cache, 8MB L3 Cache, 65W AMD Ryzen™ 5 PRO 5650G 6C/12T, 3.90 → 4.40 GHz, 3MB L2, 16 MB L3 Cache, 65W AMD Ryzen™ 7 4700G 8C/16T, 3.60 → 4.40 GHz, 4MB L2 Cache, 8MB L3 Cache, 65W AMD Ryzen™ 7 5700G 8C/16T, 3.80 → 4.60 GHz, 4MB L2, 16 MB L3 Cache, 65W AMD Ryzen™ 7 PRO 3700 8C/16T, 3.60 → 4.40 GHz, 4MB L2 Cache, 30MB L3 Cache, 65W AMD Ryzen™ 7 PRO 4750G 8C/16T, 3.60 → 4.40 GHz, 4MB L2 Cache, 8MB L3 Cache, 65W AMD Ryzen™ 7 PRO 5750G 8C/16T, 3.80 → 4.60 GHz, 4MB L2, 16 MB L3 Cache, 65W AMD Ryzen™ 9 PRO 3900 12C/24T, 3.10 → 4.30 GHz, 64MB Cache, 65W
Integrated Graphics	AMD Athlon™ Silver 3050GE AMD Radeon™ Vega Graphics 3 Graphics Cores, 1100 MHz AMD Athlon™ Gold PRO 3150G AMD Radeon™ Vega Graphics 3 Graphics Cores, 1100 MHz AMD Ryzen™ 3 3200G AMD Radeon™ Vega 8 Graphics 8 Graphics Cores, 1250 MHz AMD Ryzen™ 3 4300G AMD Radeon™ Vega Graphics 6 Graphics Cores, 1700 MHz AMD Ryzen™ 3 5300G AMD Radeon™ Vega Graphics 6 Graphics Cores, 1700 MHz AMD Ryzen™ 3 4350G AMD Radeon™ Vega Graphics 6 Graphics Cores, 1700 MHz AMD Ryzen™ 3 5350G AMD Radeon™ Vega Graphics 6 Graphics Cores, 1700 MHz AMD Ryzen™ 5 4600G AMD Radeon™ RX Vega Graphics 7 Graphics Cores, 1900 MHz AMD Ryzen™ 5 5600G AMD Radeon™ Vega 7 Graphics 7 Graphics Cores, 1900 MHz AMD Ryzen™ 5 PRO 3350G AMD Radeon™ Graphics 10 Graphics Cores, 1300 MHz AMD Ryzen™ 5 3400G AMD Radeon™ RX Vega 11 Graphics 11 Graphics Cores, 1400 MHz AMD Ryzen™ 5 3600 Not Available AMD Ryzen™ 5 PRO 4650G AMD Radeon™ Graphics 7 Graphics Cores, 1900 MHz AMD Ryzen™ 5 PRO 5650G AMD Radeon™ Graphics 7 Graphics Cores, 1900 MHz AMD Ryzen™ 7 4700G AMD Radeon™ Graphics 8 Graphics Cores, 2100 MHz AMD Ryzen™ 7 5700G AMD Radeon™ Vega 8 Graphics 8 Graphics Cores, 2000 MHz AMD Ryzen™ 7 PRO 3700 Not Available AMD Ryzen™ 7 PRO 4750G AMD Radeon™ Graphics 8 Graphics Cores, 2100 MHz AMD Ryzen™ 7 PRO 5750G AMD Radeon™ Graphics 8 Graphics Cores, 2000 MHz AMD Ryzen™ 9 PRO 3900 Not Available
Discrete Graphics	AMD® Radeon™ 520 - 2GB GDDR5 2 x DisplayPort 1.2 RX 550X - 4GB GDDR5 1 x HDMI 2.0 1 x VGA 1 x DisplayPort 1.4
Memory	4GB 8GB 16GB 32GB 64GB 128GB Memory Slots: 4 DIMM slots Memory Type: Dual Channel DDR4 Memory Memory Speed: 1866 MHz 2133 MHz 2400 MHz 2666 MHz 3200 MHz Memory Per Slot: 4GB 8GB 16GB 32GB
Storage	Up to 3 x drives 1 x M.2 PCIe SSD 2242 PCIe 3.0 x 2 2242 PCIe 3.0 x 4 2280 PCIe 3.0 x 4 1 x 2.5"/3.5" SATA Hard Drive 1 x 2.5" SATA Hard Drive
Slots	1 x PCIe 3.0 x16 full-height (length < 215mm). 1 x PCIe 3.0 x1 full-height (length < 215mm). 1 x M.2 2230 slot for WiFi and Bluetooth combo card. 1 x M.2 2242/2280 slot for PCIe solid-state drive.

Connectivity	Lenovo ThinkCentre M75t Gen 2
Wi-Fi	No Wireless LAN Card Realtek RTL8822CE Dual band 2.4 GHz/5 GHz 2x2 WiFi-6 (802.11ac) Bluetooth 5.0 Intel® Wireless-AC 9260 Dual band 2.4 GHz/5 GHz 2x2 WiFi-6 (802.11ac) Bluetooth 5.0 Realtek RTL8852AE Wi-Fi 6 Dual band 2.4 GHz/5 GHz 2x2 WiFi-6 (802.11ax) Bluetooth 5.2
Bluetooth	Optional Bluetooth 5.x
Ethernet	Realtek RTL8111EPV Gigabit Ethernet 10/100/1000 Mbps with Wake-on-LAN support. Realtek RTL8111HN Gigabit Ethernet 10/100/1000 Mbps with Wake-on-LAN support.

Software	Lenovo ThinkCentre M75t Gen 2
OS	Windows 11 Home Pro DG Windows 10 Home Pro IoT Enterprise Ubuntu Linux No OS

Camera & Audio	Lenovo ThinkCentre M75t Gen 2
Audio	Realtek® ALC623-CG codec. High Definition (HD) Audio. Optional 1 x 2W speaker.

Misc

Lenovo ThinkCentre M75t Gen 2

Security

Security Chip

Firmware TPM 2.0, TCG certified

Physical Locks

E-lock
Optional
Smart Cable Clip
Optional
Kensington® Security Slot
Padlock Loop

Chassis Intrusion Switch

Chassis intrusion switch
No chassis intrusion switch

Fingerprint Reader

Touch style fingerprint reader on mouse
No fingerprint reader

BIOS Security

Administrator password
Power-on password
Supervisor password
Hard disk password
Computrace support
Cover presence switch
Smart USB protection
Allows keyboard/mouse only, blocks all storage devices.
Individual USB port disablement

System Management

DASH 1.1
No DASH

Warranty

1-year depot service
1-year limited onsite service
3-year limited onsite service
No base warranty
